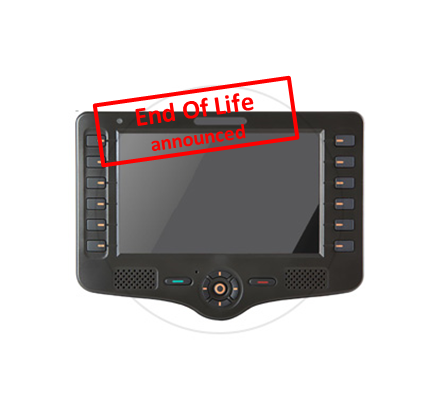

A-307

A-307 is a rugged fixed-mount Mobile Data Terminal (MDT). Providing WiFi, Bluetooth, and wired peripheral communication interfaces, the A-307 is designed to integrate with in-cab Black-Boxes and AVL units to support a variety of Fleet Management applications such as: Navigation, Routing and Dispatch, Speed by Street, driver interaction, and more. Equipped with multiple configurable mechanical buttons, A-307 allows for easy operation by drivers.

Powered by Google Android open Operating System  platform, A-317 offers a comprehensive development environment for independent application programming and system integration. With robust architecture and cost-effective design it simplifies maintenance tasks, and enables extended product life.

Designed to operate in rough commercial automotive environment, wide range of temperatures, shocks and vibrations, A-317 lowers the Total Cost of Ownership.

Operation Model

  • Fixed-mount

Operating System

  • Google Android 4

Display

  • 7” WVGA (800 X 480)
  • Resistive Touch screen

Processor

  • TI Omap 3715, 800Mhz
  • ARM Cortex™ – A8
  • Graphics Processing Unit (GPU)

RAM

  • 256MB

ROM

  • 512MB
  • SD Card Slot – Up to 32GB

Peripheral Interfaces

  • RS-232, USB OTG, USB Host
  • Digital/Analog I/O

Wireless Interfaces

  • WiFi, Bluetooth

Power

  • Direct Vehicle Battery connection (12V/24V)

Environmental

  • Temperature ranges –
    • Operating: -4 °F to +158 °F (-20 °C to +70 °C)
    • Storage: -22 °F to +176 °F (-30 °C to +80 °C)
  • Humidity – 95% ±5%RH, +40°C, non-condensing
  • IP – IP54

Certifications

FCC, CE, RoHS

Download A-307 Datasheet
