Micronet SmartHub

Micronet SmartHub Platform is a next-generation Telematics On-Board Computer.  Powered by Android open Operating System, and featuring a best-in-class set of technologies, Micronet SmartHub goes beyond traditional Telematics black-boxes to provide a powerful and flexible environment for application development and integration.



Advanced real-time applications:
With a powerful processor and extended memory, Micronet SmartHub supports advanced, resource-intensive applications. Such cost-saving, value-added applications are resource intensive: real-time fuel management, for example, demands in-vehicle analysis of the sensor and CAN data to coach drivers on fuel savings, utilizing Micronet SmartHub’s Audio features for real-time sound cues to the driver. It runs the advanced algorithms required for applications including video-based driver behavior analysis, driver fatigue recognition and ADAS.



Extended pool of services:
With the ability to run multiple applications simultaneously, Micronet SmartHub allows Telematics Service Providers to extend their offering beyond their own applications, providing their fleet customers with advanced third-party mobility applications.



In-Cab Hub:
With a rich set of wireless and wired vehicle and peripheral interfaces, Micronet SmartHub functions as an “in-cab hub” to which other in-vehicle devices, accessories and sensors can easily connect. Micronet SmartHub’s support for cellular communication, WiFi hotspot, Bluetooth audio, BT tethering and BLE, NFC, WiFi direct, multiple CAN channels (including open/customizable CAN libraries) and multiple I/O, give it a significant edge over traditional Telematics black-boxes.



Shorter Development Cycles:
With a huge ecosystem of Android development tools and software frameworks, and with a flourishing community of developers, Android-based platforms accelerate development and integration cycles.

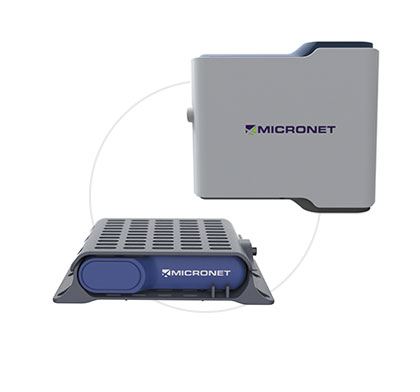

Micronet SmartHub & Micronet SmartHub-U Product Models:
Micronet SmartHub Platform supports two physical product models to best fit in with the solution specific operational and installation requirements. The standard “Micronet SmartHub” product model supports on-dash or windshield mounting and provides integrated Voice capability, visible LED notifications, and user accessible Function Key. The “Micronet SmartHub-U” model allows a hidden under-dash or under-sit product mounting, provides enhanced device Ingress Protection level (IP65) and supports dedicated interfaces for external Speaker, Microphone and GPS Antenna connection. Both models are based on the identical Electronic, Software and Connectivity core.



Compatibility with Micronet SmarTab:
The Micronet SmarTab, Micronet’s next generation Android rugged tablet, is based on the same hardware and software platform as SmartHub. Telematics Service Providers who develop applications for Micronet SmartHub can easily adjust and run them also on Micronet SmarTab for fleet customers who need tablets as part of their solution.



Lower Total Cost of Ownership:
With a robust architecture and cost-effective design, Micronet SmartHub simplifies maintenance tasks and enables extended product life. Designed to operate in harsh commercial automotive environments, withstanding shocks and vibrations, functioning reliably in broad-ranging temperatures, and incorporating the Best-in-Class Enabling Technology Feature Set, Micronet SmartHub Platform lowers the Total Cost of Ownership.

Operation Model

  • Fixed-mount: under-sit, under-dash, on-dash or on-windshield

Operating System

  • Google Android 5.1

Processor

  • Qualcomm, Snapdragon 410, 1.2 GHz
  • Quad Core (4 x ARM® Cortex™ A53)

RAM

  • 1GB

ROM

  • 8GB eMMc
  • Micro SD Card Slot – up to 32GB (Internal)

 Peripheral Interfaces

  • Multiple Digital/Analog I/O
  • Serial Communication –
    • RS-232/RS-485
    • USB OTG
    • USB Host
  • Vehicle BUS Connectivity –
    • CAN BUS
    • SWC
    • J-1708

Wireless Interfaces

  • WiFi
  • Bluetooth
  • NFC (Windshield Model)

Integrated Cellular and GPS

  • 3.5G
  • 4G LTE (North America)
  • GPS

Sensors

  • Motion Sensors –
    • Compass
    • Gyroscope
    • Accelerometer
    • Wiggle sensor (Device Power-up trigger)

Power

  • Direct Vehicle Battery Connection (12V/24V)

Mechanical

  • Vibration – SAE-J1455 compliant
  • Mechanical Shock – SAE-J1455 compliant

Environmental

  • Temperature Ranges –
    • Operating: -4°F to +158°F (-20°C to +70°C)
    • Storage: -22°F to +176°F (-30°C to +80°C)
  • Humidity – 95% ±5%RH, +40°C, non-condensing
  • RoHS – RoHS  compliant

Certifications

FCC, PTCRB, CE, E-Mark

Micronet SmartHub Platform Development Tool kit (DTK)



Micronet SmartHub Development Tool kit contains a wide set of tools and accessories required for quick and smooth product evaluation, integration and testing:


  • Hardware:

For Micronet SmartHub DTK contents, please refer to – Micronet SmarHub DTK

For Micronet SmartHub-U DTK contents, please refer to – Micronet SmarHub-U DTK


  • Software:
    • Full Micronet SDK
    • Application Development Tolls

  • Documentation:
    • Getting Started Guide
    • Hardware Manual
    • Remote Control Guide
    • OS Update Guide
    • OS Release Notes
    • Regulatory Certifications

  • The Development Tool Kit includes support from Micronet’s Technical team.

Micronet SmartHub Platform Accessories*



RAM®  Short mounting Arm




RAM®  Suction mounting Cup




Main interface cable**

Power, I/O and Communication interfaces




* Pictures for reference only
** Cable customization option available
